Country of Origin: Made in USA.
Cost: $2.95 per roll. 24 Rolls to a case.
Heat Shield is a General Use Resin Formula. This General Use Resin happens to be Best in Class for Heat Resistance - 390° vs 290° for Zebra’s 5095 formula. Heat Shield Resin Rocks if your Package spends time outside, goes through a Heat Tunnel or Undergoes Heat Sterilization. Heat Shield is an Industry Leading, General Use Resin known as DNP's R300.
LabelStock (a.k.a Substrate):
Vinyl (Topcoat), Flood-Coated, Polyesters (Gloss Topcoat), Polyesters (Matte Topcoat), Polymide, Polyethylene, Polyolefin, Polypropylene, Valeron, Nylon, Overlaminates and many others.

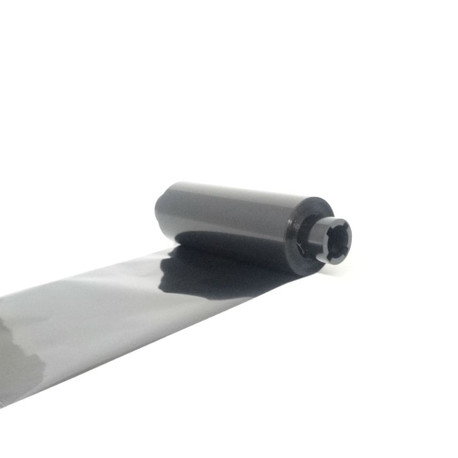

These Resin ribbons are coated side out (a.k.a ink on the outside). Inner diameter (core size) of this ribbon is 1/2” (12.7mm). These ribbons can reach print speeds of up to 8 IPS (inches per second) and have an ink transfer temperature of 199°C (390°F).
We are so Confident in This Ribbon Formula, We will Provide a Free Ribbon Sample. Test Your Label Stock and Printer. Remove all Doubts. Call Us at: 1-800-434-9011
Part Number Compatibility: 18105620, 18106198, T26833ZA, E-LR057074, FED0574S & 800132-202
Ribbon width should be 1/4 to 1/2 inch wider than the label or label carrier (backing of label). If you go too wide on the ribbon, you run the risk of causing the ribbon to wrinkle. If you go to narrow you will experience a reduced lifespan of the printhead.
- The duller side of the ribbon is the ink coated side. This ribbon’s ink is on the outer side of the ribbon. The shiny side is in and duller side faces out.
- Our ribbon’s backcoating is formulated for printhead protection. The backcoating creates a protective barrier that results in significantly less build-up on your printhead’s heating element.
- Our ribbon’s ink formulation dissipates static, preventing static build-up and reducing the threat of printing voids or the potential for a spark burning out a printhead.
- Our Heat Shield ribbon is approved by the following Agencies: FDA (indirect food contact), UL, REACH & RoHS
- Our ribbons are ISO 9001 Quality Management and ISO 14001 Environmental Management certified
- Our ribbon’s recommended shelf life is one year. Avoid high humidity and direct sunlight during storage. Storage temperature should be 41°F to 95°F (5°C to 35°C) at 20% to 85% Relative humidity.
Formula Compatibility: R300, V300, Zebra 5095, Zebra 6200, Zebra 4100, Zebra 4800, Zebra 6100, B324, B325, Z302, AXR 1, AXR 7+, HL21, HL49, HL72, LR21, NK22, NK45, SP330, B110C, B120HS, TD331, US310, US450
If You do not See Your Printer Model Call Us. We can Match You with the Correct Ribbon 1-800-434-9011.
Printer Models Certified for This Resin Ribbon:
Zebra: TLP 2824, TLP 2824 Series, TLP 2824 Plus, TLP 2824-Z
And Many More! Questions? Your Printer not Listed? Call 1-800-434-9011
