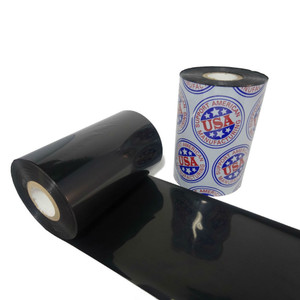

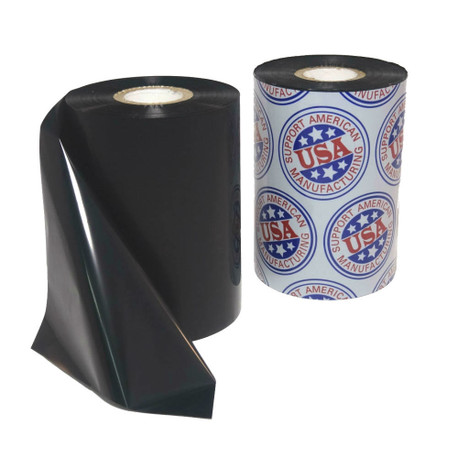

Resin Ribbon: 1.57” x 984’ (40.0mm x 300m), Ink on Outside, Heat Shield, $5.46 per Roll in 36 Roll Case.Ganson
- Current Stock:
- 1 (800) 434-9011
- In stock
Country of Origin: Made in USA.
Cost: $5.46 per roll. 36 Rolls to a case.
Best In Class for Abrasion and Solvent Resistance.
Our Heat Shield Resin provides Best In Class Heat Resistance: Up to 390 degrees Fahrenheit which is 100 degrees higher than Zebra’s 5095. This ribbon rocks if your package goes through a heat tunnel or undergoes heat sterilization.
LabelStock (a.k.a Substrate):
Vinyl (Topcoat), Flood-Coated, Polyesters (Gloss Topcoat), Polyesters (Matte Topcoat), Polymide, Polyethylene, Polyolefin, Polypropylene, Valeron, Nylon, Overlaminates and many others.
These Resin ribbons are coated side out (a.k.a ink on the outside). Inner diameter (core size) of this ribbon is 1” (25.4mm). These ribbons can reach print speeds of up to 8 IPS (inches per second) and have an ink transfer temperature of 199°C (390°F).
We are so Confident in This Ribbon Formula, We will Provide a Free Ribbon Sample. Test Your Label Stock and Printer. Remove all Doubts. Call Us at: 1-800-434-9011
Part Number Compatibility: 18102415, 18105515, 18102415, T25911ZA, E-ZA040300, FRD04030 & ZEB310-040300
Ribbon width should be 1/4 to 1/2 inch wider than the label or label carrier (backing of label). If you go too wide on the ribbon, you run the risk of causing the ribbon to wrinkle. If you go to narrow you will experience a reduced lifespan of the printhead.
- The duller side of the ribbon is the ink coated side. This ribbon’s ink is on the outer side of the ribbon. The shiny side is in and duller side faces out.
- Our ribbon’s backcoating is formulated for printhead protection. The backcoating creates a protective barrier that results in significantly less build-up on your printhead’s heating element.
- Our ribbon’s ink formulation dissipates static, preventing static build-up and reducing the threat of printing voids or the potential for a spark burning out a printhead.
- Our Heat Shield Resin ribbon is approved by the following Agencies: FDA (indirect food contact), UL, REACH & RoHS
- Our ribbons are ISO 9001 Quality Management and ISO 14001 Environmental Management certified
- Our ribbon’s recommended shelf life is one year. Avoid high humidity and direct sunlight during storage. Storage temperature should be 41°F to 95°F (5°C to 35°C) at 20% to 85% Relative humidity.
Formula Compatibility: R300, V300, Zebra 5095, Zebra 6200, Zebra 4100, Zebra 4800, Zebra 6100, B324, B325, Z302, AXR 1, AXR 7+, HL21, HL49, HL72, LR21, NK22, NK45, SP330, B110C, B120HS, TD331, US310, US450
If You do not See Your Printer Model Call Us. We can Match You with the Correct Ribbon 1-800-434-9011.
Printer Models Certified for This Resin Ribbon:
Zebra: 105S, 105Se, 105SL, 110Xi4, 110XiIII Plus, 140Xi, 140Xi4, 140XiII, 140XiIII, 140XiIII Plus, 160S, 170Xi, 170Xi4, 170XiII, 170XiIII, 170XiIIIPlus, 220Xi, 220Xi4, 220XiII, 220XiIII, 220XiIIIPlus, 2746, 2746e, 2824 Series, 2824-Z, 2844, 2844-Z, 3642, 90Xi, 90XiII, 90XiIII, 90XiIII Plus, 96XiIII, 96XiIII Plus, GT800, QualaBar 450V, R2844-Z, R402, R110Xi, R110XiIII Plus, R-140, R170Xi, R4M Plus, S4M, S300, S400, S500, S600, T402, TB260, TB285, ThermaBar 260, ThermaBar 280, TLP2242, TLP2642, LTP2742, TLP2344, TLP2746, TLP2044, TLP2046, TLP2242, TLP2344, TLP2642, TLP2824Plus, Z105, Z105Se, Z105SL, Z130, Z140, Z140-S, Z142, Z143, Z220, Z221, Z222, Z223, Z4000, Z4M, Z4M Plus, Z60, Z6000, Z6M, Z6M Plus, Z90, Z90A, Z91, Z92, Z92A, Z93, Z93A, Z95, ZM600, ZT200, ZT220, ZT230
Bizerba: CWS, GD GS, GH, GH7000, GV, GX, GLP, LP-151, LP-204T, LP-207T, LP-306, TTD350
Brady: 105S, 140xi, 152, 170xi, 200, 200M, 200M-e, 200MVP, 200xi, 203, 203x, 203x Plus, 203x PlusII, 206M, 260M, 300, 300MVP, 300MVP Plus, 300X, 300 X Plus, 360X, 360X Plus, 360X PlusII, 600X Plus, 600X PlusII, 90xi, S-300, S-500, T2000, T300, THT200
Citizen: S4 203, CLP 621Z, CLP 631Z
Intermec: 194, 195, 260, 296, 407, 7421, 7422, C4, EasyCoder 91, PC4, PC41, PC42, Swedot 196
Markem: 4221, 4224, 4225, 4240, 435, 5230, Cimjet 2440, Cimjet 300, Cimjet 307LT, Cimjet 311, Cimjet 314P, Cimjet 321, Cimjet 331, Cimjet 334, Cimjet 342, Cimjet 346, Cimjet 2440, LP710, SK 4200, SK 4200A SK, SK 4210, SK 4220A, SK 4221, SK 4224, SK 4225, SK 4240, SK 4270, SK 5230, SK 5320
And Many More!
