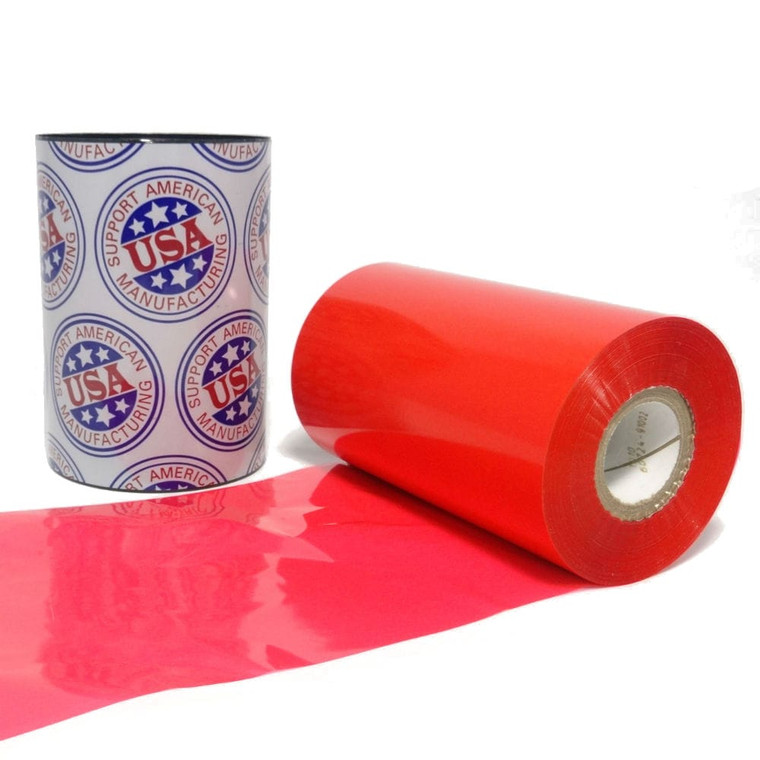

These Red Resin ribbons are coated side out (a.k.a ink on the outside). Inner diameter (core size) of this ribbon is 1” (25.4mm). These ribbons can reach print speeds of up to 8 IPS (inches per second) and have an ink transfer temperature of 202°C (396°F).
We are so Confident in This Ribbon Formula, We will Provide aFree Ribbon Sample. Test Your Substrate and Printer. Remove all Doubts. Call Us at: 1-800-434-9011
Our Red Resin is also known by the following Part Numbers: 18107304
Ribbon width should be 1/4 to 1/2 inch wider than the label or label carrier (backing of label). If you go too wide on the ribbon, you run the risk of causing the ribbon to wrinkle. If you go to narrow you will experience a reduced lifespan of the printhead.
The duller side of the ribbon is the ink coated side. This ribbon’s ink is on the outer side of the ribbon. The shiny side is on the onside and duller side faces out.
Our ribbon’s backcoating is formulated for printhead protection. The backcoating creates a protective barrier that results in significantly less build-up on your printhead’s heating element.
Our ribbon’s ink formulation dissipates static, preventing static build-up and reducing the threat of printing voids or the potential for a spark burning out a printhead.
Our Red Resin ribbon is approved by the following Agencies: FDA (indirect food contact), UL, REACH & RoHS
Our ribbons are ISO 9001 Quality Management and ISO 14001 Environmental Management certified
Our ribbon’s recommended shelf life is one year. Avoid high humidity and direct sunlight during storage. Storage temperature should be 41°F to 95°F (5°C to 35°C) at 20% to 85% Relative humidity.
Our Red Resin Formulation is also known by the following Names: R510C, AXR 600R, B324R, C5441, C440, D310A, HL21, HL35, DC300, DC400
If you do not see your printer model on the list below we still have a ribbon for you.
